CORE Retrofit Switch Module

Product Description

“CORE is a smart retrofit switch module designed to intelligently upgrade conventional electrical wiring into a connected automation system—without altering existing switch plates or wall finishes.

Built for retrofit scenarios, CORE installs discreetly behind traditional switches, allowing lighting, fans, and other loads to be automated while preserving the original look and tactile feel of physical switches. This makes it especially valuable for renovation projects, occupied homes, and cost-sensitive upgrades where rewiring or panel replacement is not feasible.

CORE bridges legacy electrical infrastructure with modern smart control, enabling app-based automation, scheduling, and scene integration—quietly working in the background while the space remains visually unchanged.”

Build Quality

• Manufactured using high-grade, flame-retardant ABS plastic

• Robust internal circuitry for long-term reliability

• Designed to withstand regular electrical load fluctuations

• Secure screw terminals ensure stable and safe wiring connections

Design

• Minimal, clean white finish suitable for concealed or panel installation

• Compact rectangular form factor for easy mounting inside switchboards or junction boxes

• Clearly labeled terminals for quick and error-free installation

• Ventilation-friendly enclosure for heat dissipation

Specifications (Typical)

• Input Power: AC mains (typically 220–240V, 50/60Hz)

• Terminals:

  • N – Neutral

  • L – Live

  • O1, O2, O3 – Output channels (for lights/appliances)

  • S1, S2, S3 – Switch input terminals

• Number of Outputs: 3 channels

• Control Type: Manual switch input / Smart controller compatible

• Mounting Type: Wall-mounted / DIN or concealed box installation

• Application: Lighting control, appliance automation, smart home systems

Package Including

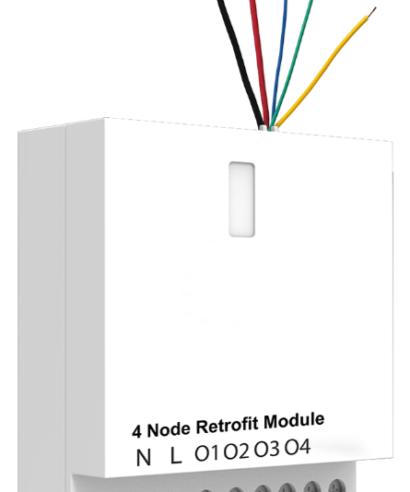

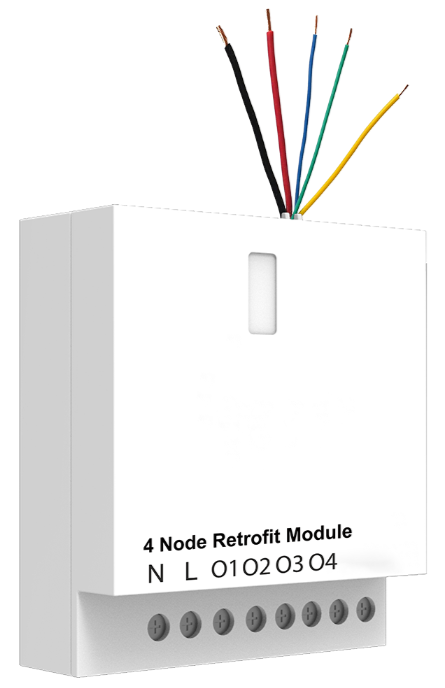

• 1 x 4- Node Retro Fit Module

Ideal For

• Smart homes and home automation projects

• Interior automation solutions

• Offices, hotels, and commercial spaces

• Retrofitting traditional switches into smart systems
